Automotive Electronics Test Solutions

Automated PCBA Test Systems for Automotive Electronics Manufacturing

Automotive electronics manufacturers need production test systems that can keep pace with high-volume manufacturing while supporting test coverage, programming, functional verification, and traceability.


CheckSum helps manufacturers reduce automotive PCBA test bottlenecks with automated inline handling, dual-panel testing, Multi-Core ICT, parallel in-system programming, and functional test in one scalable production test strategy.





Request a Free Project Analysis
Explore the ILS-X2
Automotive Electronics Page Hero Image

Automotive PCBA Test Built for

Throughput, Coverage and Traceability

Automotive electronics are becoming more complex, more connected, and more software-driven. As test content increases, traditional sequential test processes can become a production bottleneck.

CheckSum helps automotive electronics manufacturers improve throughput by combining in-circuit test, in-system programming, and selected functional test into a more efficient automated production test process.

With parallel test and dual-panel automation, manufacturers can test more boards per cycle, reduce operator handling, improve process feedback, and reduce the need to add multiple standalone test stations.

Automotive Electronics Applications

CheckSum systems are used for production test applications where manufacturers need to verify electrical assembly quality, program devices, perform functional checks, and support production traceability.

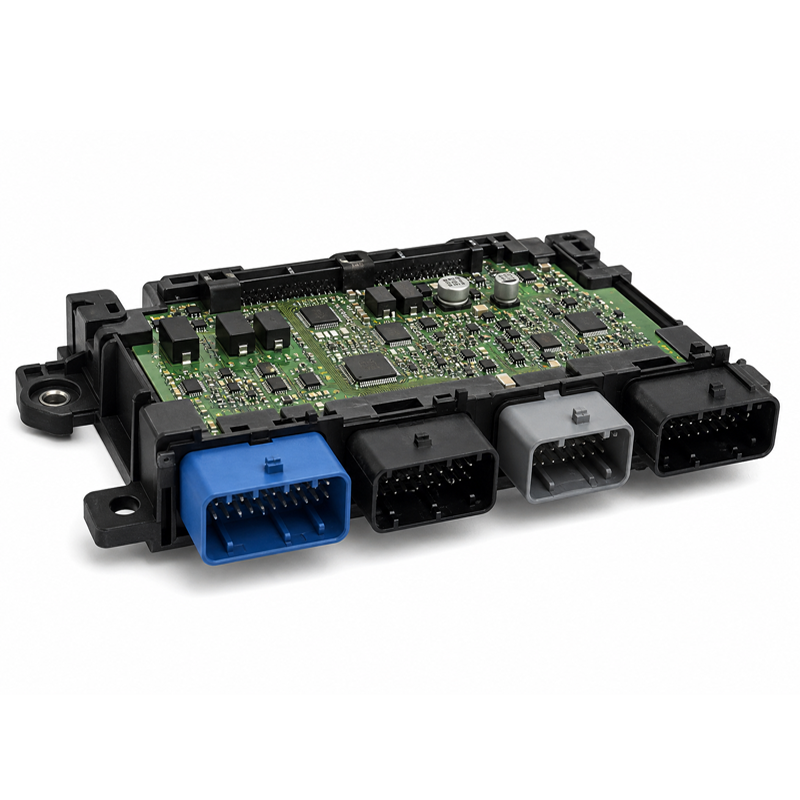

Body Control Modules

Body Control Modules

Automotive Body Control Modules (BCMs) manage essential vehicle functions such as lighting, door locks, windows, and climate control. CheckSum's Parallel Test technology helps manufacturers keep pace with high-volume production by performing In-Circuit Test (ICT), In-System Programming (ISP), and Parallel Functional Test (PFT) simultaneously. The result is faster testing, higher throughput, lower manufacturing costs, and improved product quality.

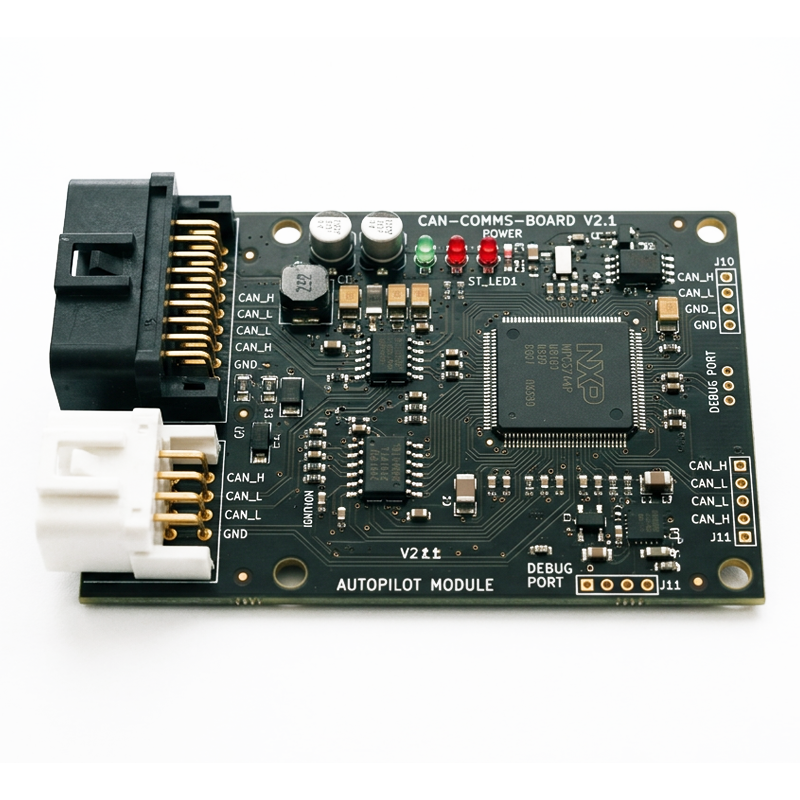

CAN LIN 800 x 800

CAN and LIN PBCAs

CAN and LIN communication boards enable reliable data exchange between electronic control units throughout modern vehicles. CheckSum's Parallel Test technology combines In-Circuit Test (ICT), In-System Programming (ISP), and Parallel Functional Test (PFT) to validate network communication, reduce test time, increase throughput, and ensure dependable performance in high-volume automotive manufacturing.

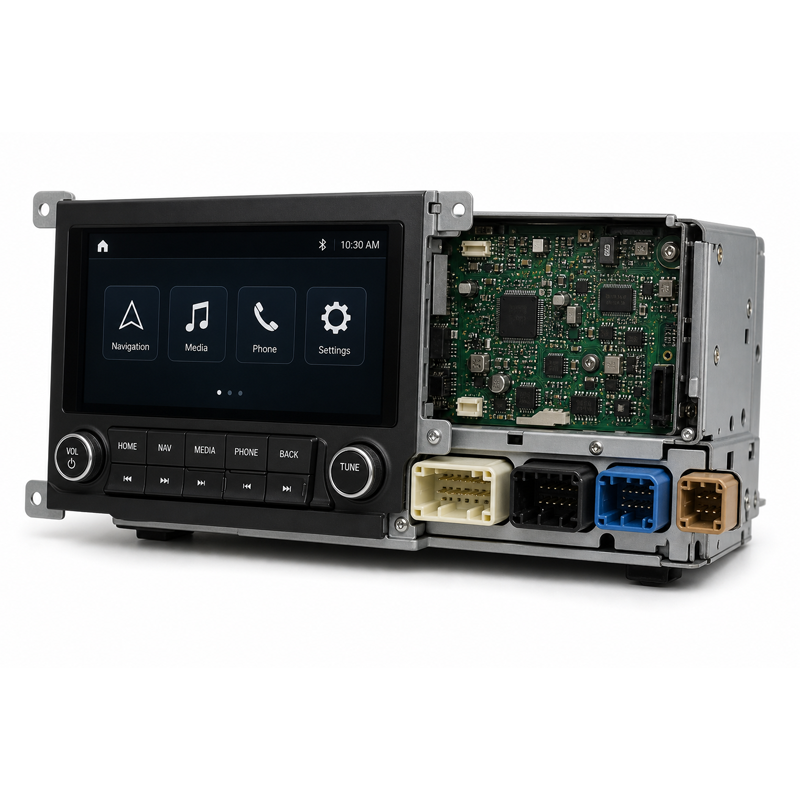

Infotainment Assembies

Infotainment Assemblies

Infotainment Assemblies combine complex electronics for displays, connectivity, audio, navigation, and vehicle communication systems. CheckSum's Parallel Test technology helps automotive manufacturers improve production efficiency by combining In-Circuit Test (ICT), In-System Programming (ISP), and Parallel Functional Test (PFT) to reduce test time, increase throughput, and ensure reliable performance of advanced vehicle electronics.

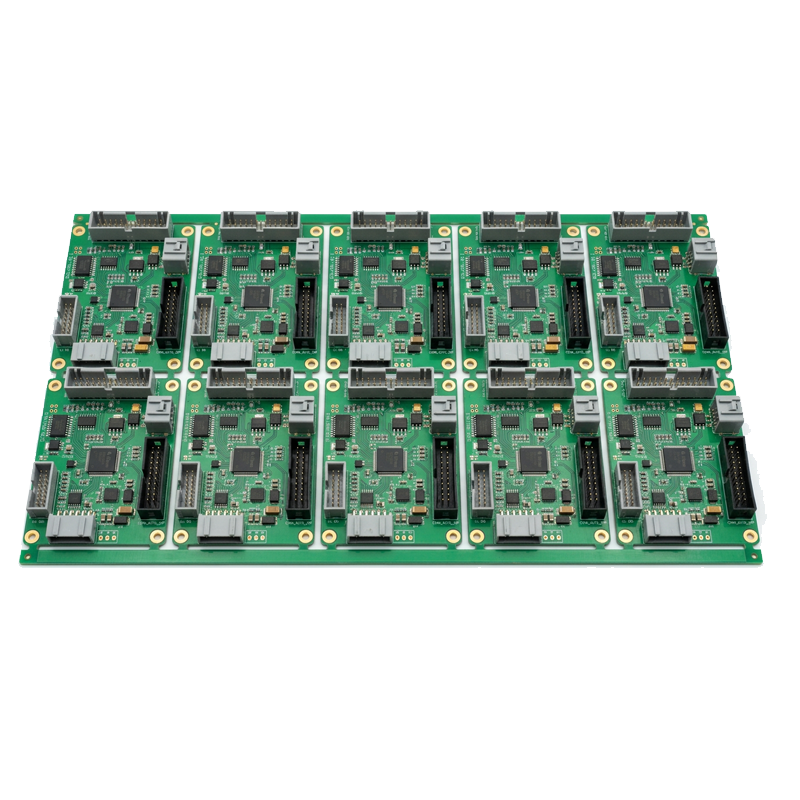

Panelized Automotive PCBAs-1

Panelized Automotive PCBAs

Panelized Automotive PCBAs allow manufacturers to produce multiple circuit boards in a single SMT process, but traditional test methods can create production bottlenecks. CheckSum's Parallel Test technology enables automated testing of multi-board panels with In-Circuit Test (ICT), In-System Programming (ISP), and Parallel Functional Test (PFT), improving throughput, reducing handling time, lowering cost per board, and keeping pace with high-volume automotive electronics manufacturing.

Relay Assembies

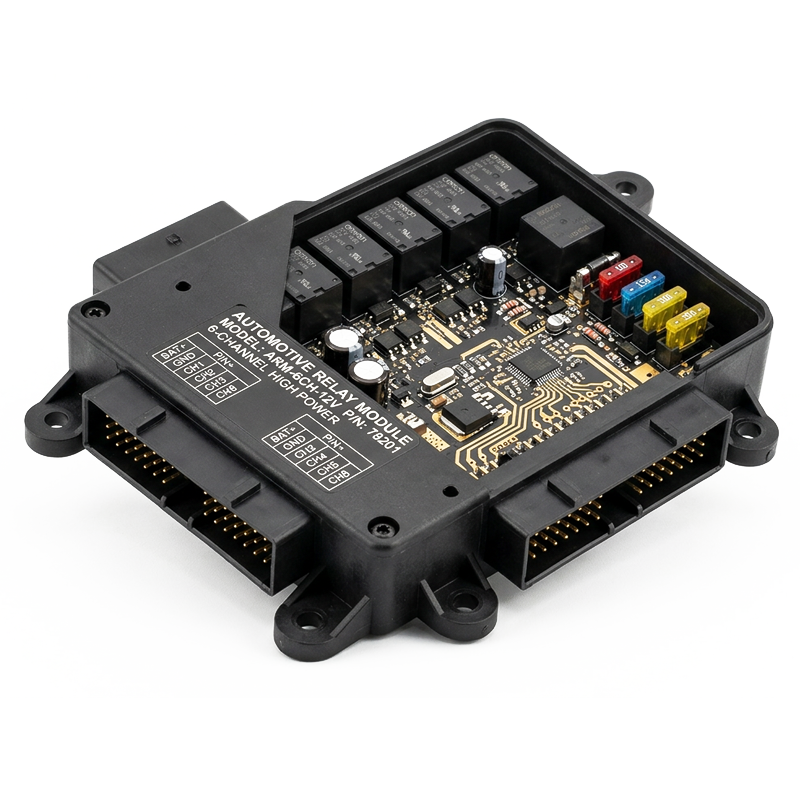

Relay Assemblies

Automotive Relay Assemblies provide reliable switching and power distribution for critical vehicle electrical systems. CheckSum's Parallel Test technology combines In-Circuit Test (ICT), In-System Programming (ISP), and Parallel Functional Test (PFT) to verify relay assembly performance while reducing test time, increasing throughput, and ensuring consistent quality for high-volume automotive production.

Battery Management System

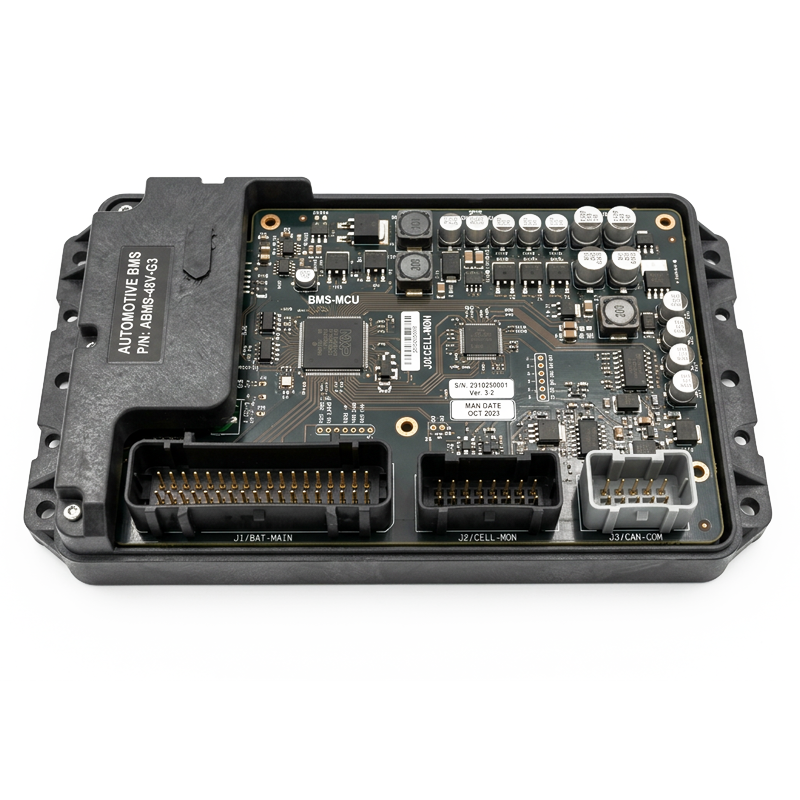

Battery Management Systems

Battery Management Systems (BMSs) monitor and protect battery systems by managing cell balancing, voltage, temperature, and overall battery health. CheckSum's Parallel Test technology combines In-Circuit Test (ICT), In-System Programming (ISP), and Parallel Functional Test (PFT) to reduce test time, increase throughput, and verify the performance and reliability of battery management electronics for automotive applications.

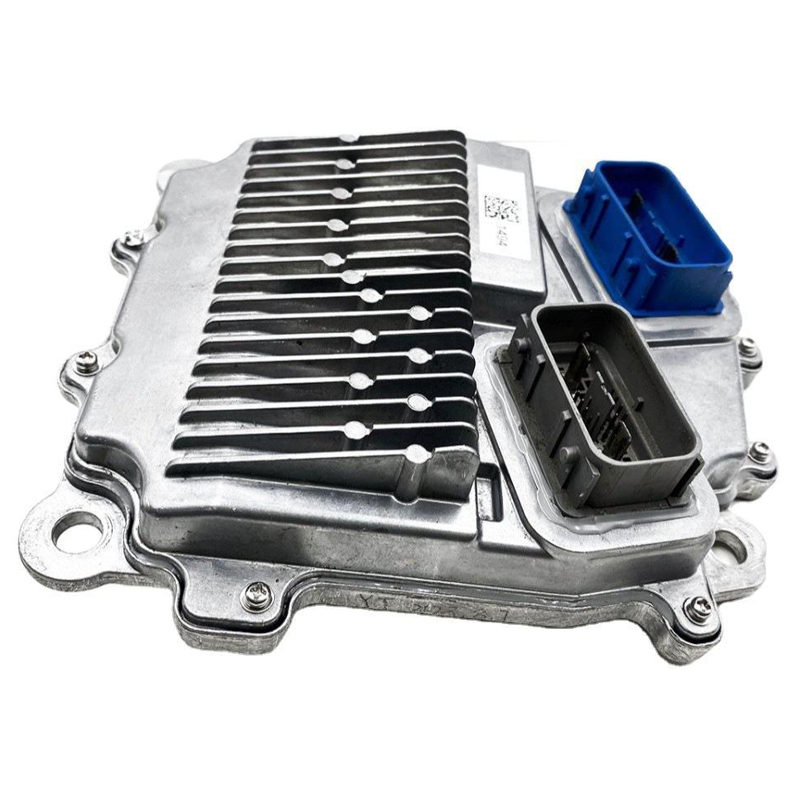

ECU

Engine Control Units

Automotive Electronic Control Units (ECUs) are the intelligence behind today's vehicles, controlling everything from engine management and braking to safety and comfort systems. CheckSum's Parallel Test technology combines In-Circuit Test (ICT), In-System Programming (ISP), and Parallel Functional Test (PFT) to reduce test time, increase throughput, and ensure every ECU meets demanding automotive quality and reliability standards.

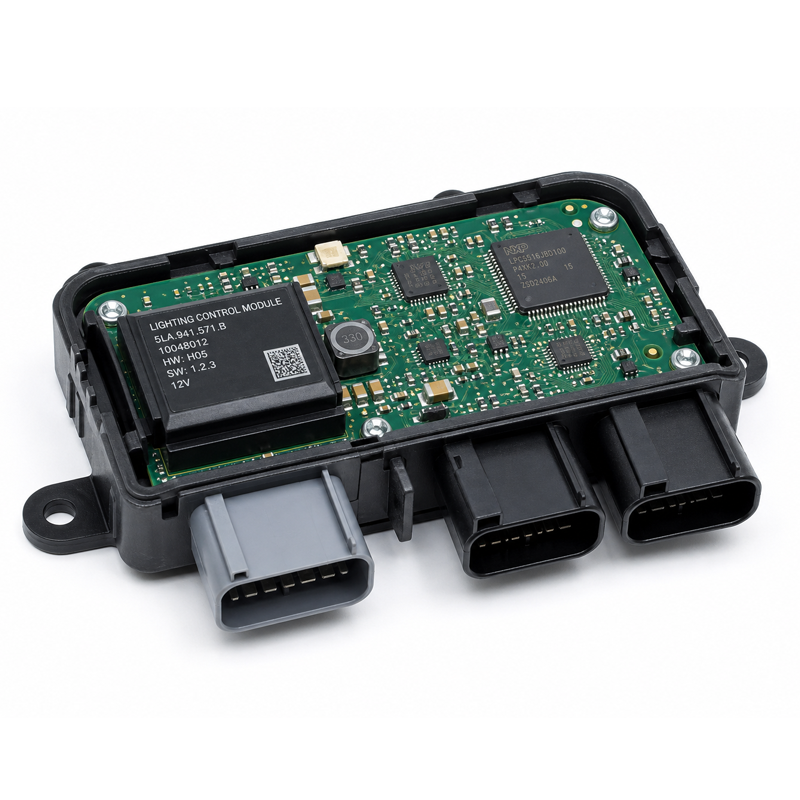

Lighting Control Module

Lighting Control Modules

Lighting Control Modules (LCMs) manage critical vehicle lighting functions, including headlights, turn signals, interior lighting, and advanced LED systems. CheckSum's Parallel Test technology helps automotive manufacturers accelerate production by combining In-Circuit Test (ICT), In-System Programming (ISP), and Parallel Functional Test (PFT) in a single automated solution. This enables faster test cycles, increased throughput, reduced labor costs, and reliable quality control for high-volume automotive electronics.

Sensor Interface PCBAs 800 x 800

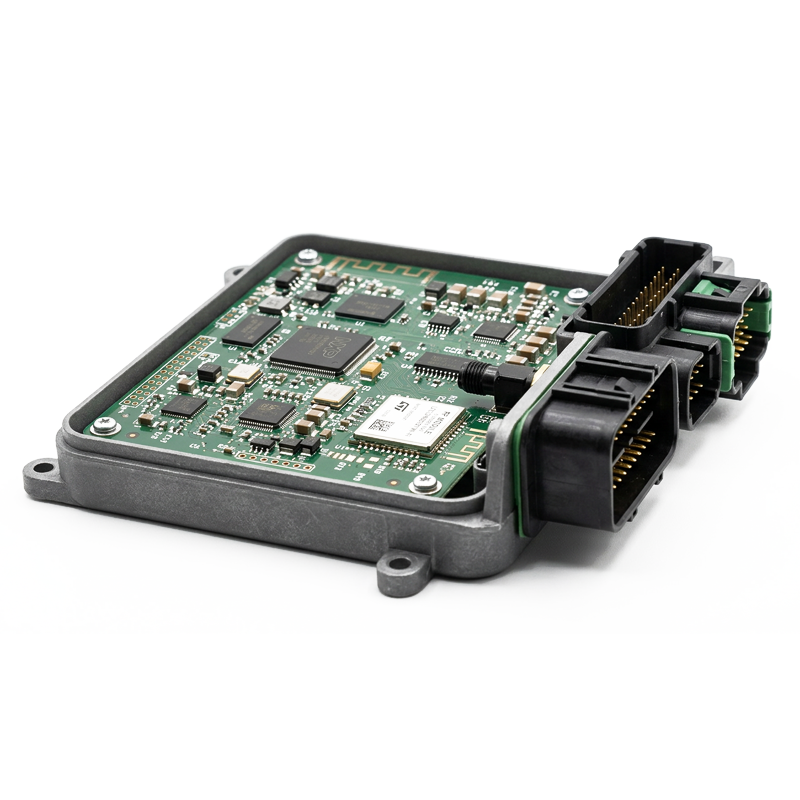

Sensor Interface PCBAs

Sensor Interface PCBAs connect and process signals from critical automotive sensors used in safety, powertrain, and driver assistance systems. CheckSum's Parallel Test technology combines In-Circuit Test (ICT), In-System Programming (ISP), and Parallel Functional Test (PFT) to reduce test time, increase throughput, and verify accurate, reliable performance for high-volume automotive electronics manufacturing.

Automotive Electronics Cybersecurity

Secure Programming and Automated PCBA Test Systems for Automotive Electronics Manufacturing

As automotive cybersecurity requirements continue to expand, CheckSum helps manufacturers integrate secure programming directly into the production test process. Through advanced MultiWriter™ in-system programming technology and strategic cybersecurity partnerships, CheckSum supports the secure provisioning of encryption keys, device serialization, and embedded security credentials during manufacturing.

By combining cybersecurity programming with high-speed In-Circuit Test (ICT), Parallel Functional Test (PFT), and automated inline production systems, manufacturers can strengthen product security without sacrificing throughput, helping meet modern automotive production and traceability requirements while keeping pace with today's SMT manufacturing line




Automotive Cybersecurity

Why Automotive PCBA Test Becomes a Bottleneck

Automotive electronics manufacturers are often testing dense, panelized assemblies with multiple devices to program, communication interfaces to verify, and quality requirements that demand repeatable production control.


When ICT, programming, and functional test are handled as separate sequential steps, test time can limit production output. Manufacturers may respond by adding more fixtures, more stations, more operators, and more floor space. That can increase cost without solving the underlying test strategy problem.
    • High-volume production requirements
    • Increasing programming time
    • More complex PCBAs and higher test content
    • Need for repeatable production test processes
    • Traceability and barcode tracking requirements
    • CAN, LIN, voltage, current, and functional verification needs
    • Pressure to reduce test cost per board
    • Limited floor space for additional test stations
    • End-of-line test bottlenecks
    • Need for faster defect feedback to production

How CheckSum Helps Automotive

 Manufacturers Improve Test Throughput

CheckSum’s automated parallel test approach helps automotive electronics manufacturers reduce bottlenecks by testing more circuits, boards, devices, or functions at the same time.

Instead of relying on one test process at a time, CheckSum helps manufacturers build a production test strategy that combines automation, parallel ICT, parallel programming, and functional verification.


CheckSum provides more than a standalone test platform. We deliver the tools and support needed to build and sustain production-ready test processes.
ILS-X2 12kN Group Transp

 Automotive PCBA Test FAQs

Traditional Test vs. Parallel Test Strategy

As automotive electronics become more complex, simply adding more sequential test stations may not be the most efficient path to higher throughput. A parallel test strategy helps manufacturers increase capacity by performing more testing, programming, and verification within each production cycle.

By combining automation, Multi-Core ICT, MultiWriter ISP, and Parallel Functional Test, CheckSum helps manufacturers build a scalable production test process designed for high-volume automotive electronics manufacturing.

Traditional Test Approach

  • Add more standalone test stations

  • Add more fixtures

  • Add more operators

  • Increase floor space

  • Move defects through multiple sequential processes

  • Wait longer for process feedback

  • Manage additional maintenance and support requirements

  • Increase complexity as production volume grows

CheckSum Parallel Test Strategy

  • Test multiple boards or circuits in parallel

  • Program multiple devices simultaneously

  • Combine ICT, ISP, and selected functional test

  • Reduce unnecessary operator handling

  • Improve defect feedback earlier in the process

  • Support dual-panel automated handling

  • Reduce dependence on additional standalone stations
  • Scale capacity by increasing parallelism rather than simply duplicating equipment
Engineers reviewing PCBA test analysis and throughput data

Free Project Analysis

Find Out What Parallel Test Could Mean for Your Production Line



With CheckSum's Free Test Analysis, you get real test process insights -- on your application -- with no obligation.

What You Get:

✅ Verified Cycle Time Improvements
✅ Throughput and Efficiency Projections
✅ ROI Projections Specific to your Application





Request a Free Project Analysis
